@chestnutlabs/gcode-renderer-three

Three.js toolpath renderer consuming ToolpathIR for the Chestnut Labs G-code Preview stack (design: DD-004, live-progress overlay: DD-006).

Peer dependency: three (supported range ^0.178.0) — install it alongside this package.

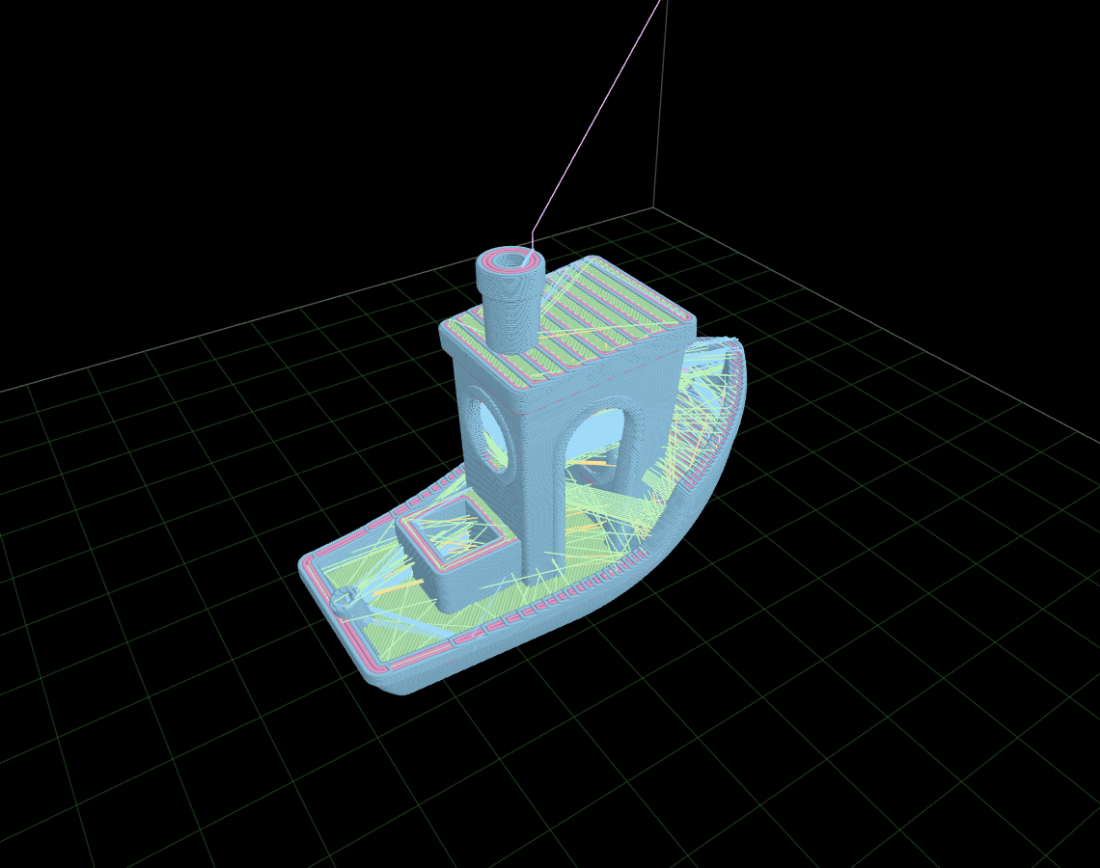

• Layer-chunked line geometry with decimation + disclosure; tube geometry with automatic quality fallback
• Layer-range clipping and segment-level scrub via draw ranges (no rebuilds)
• Per-file build plates (setBuildVolume, mismatch events, consumer-wins precedence)
• DD-006 live-progress overlay: completed cut + translucent remaining-path ghost + always-on-top marker (byte-exact) or uncertainty band (approximate); user scrub always wins

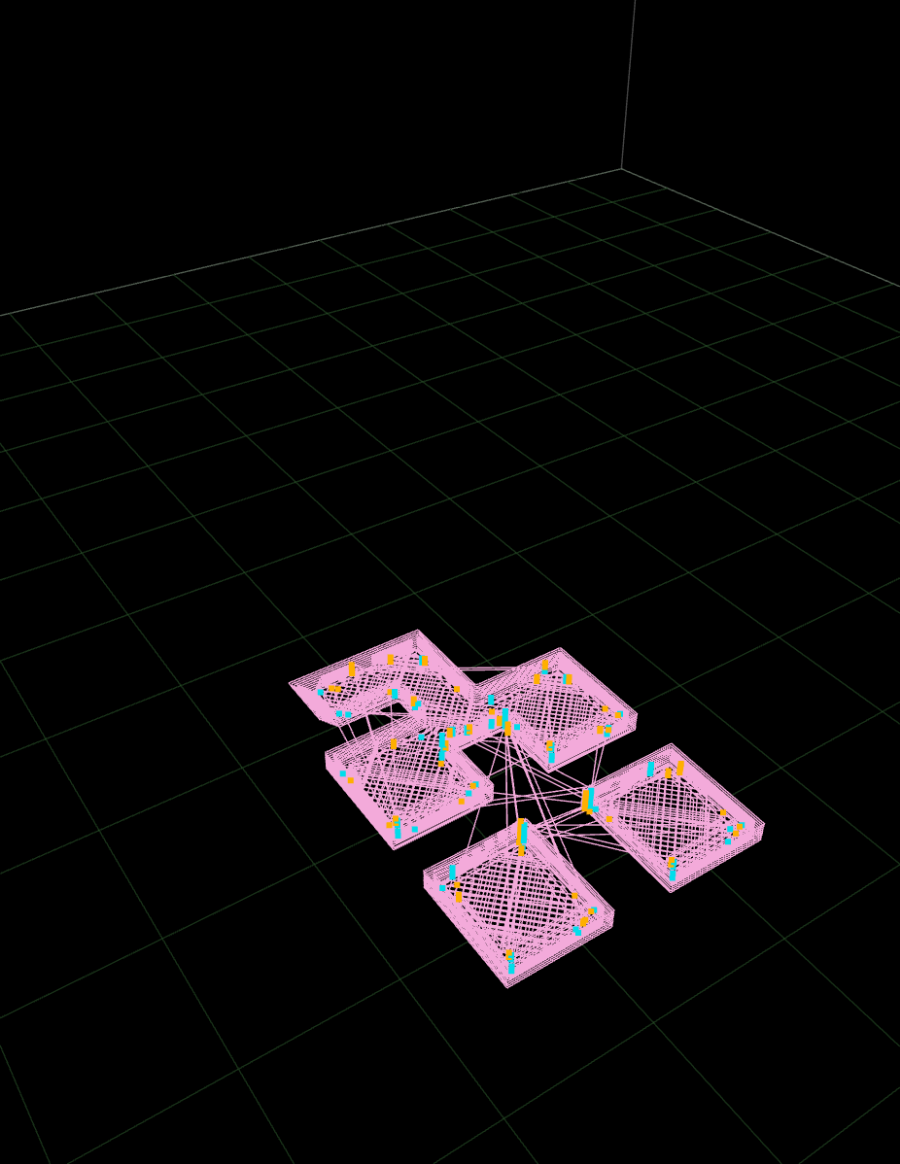

• Opt-in retraction/deretraction markers (setShowRetractions) — warm = retract, cool = unretract, clipped by the same layer/scrub window; capability-honest (shown only when the IR carries events)

• Time-budgeted build ticks (rAF with a timeout backstop — works when rAF is suspended or absent), WebGL context-loss rebuild, injectable GL backend and frame scheduler (testable & headless-shaped)

import { ToolpathRenderer } from '@chestnutlabs/gcode-renderer-three';

const renderer = new ToolpathRenderer({ canvas });
renderer.setIR(ir);           // builds progressively; 'buildComplete' event when done
renderer.setLayerRange(0, 42);
renderer.setProgress(mapped); // DD-006 MappedProgress overlay
Copy

Studio look (opt-in)

studioTheme('dark' | 'light') returns a Theme (gradient backdrop, solid build plate with grid and outline, contact shadow) and STUDIO_CAMERA_FOV is 32. Both are optional: with no theme the renderer is unchanged.

import { ToolpathRenderer, studioTheme, STUDIO_CAMERA_FOV } from '@chestnutlabs/gcode-renderer-three';

const renderer = new ToolpathRenderer({ canvas, theme: studioTheme('dark'), cameraFov: STUDIO_CAMERA_FOV });
renderer.setBuildVolumeCage(false); // the preset is measured with the cage off
Copy

cameraFov accepts 10-120 degrees and throws RangeError outside it. See the Studio look and build plate guide.

Pixel ratio (opt-in)

ToolpathRenderer (and createModelViewer) take pixelRatio: a number in (0, 4], or 'device' for min(devicePixelRatio, 2), followed live. renderer.setPixelRatio(ratio) changes it later. Anything else throws RangeError. Unset, the renderer keeps its own ratio and never calls the GL's setPixelRatio at rest. interactionQuality lowers the ratio while you orbit and settles back on yours. The type is PixelRatioOption.

const renderer = new ToolpathRenderer({ canvas, pixelRatio: 'device' });
Copy

An unsized capture() is the resting drawing-buffer size when unset and the canvas's CSS size when set, so with the built-in renderer setting a ratio never changes the default capture size (a custom createRenderer already at another ratio returns its own drawing-buffer size when unset); pass width/height for a crisper image. Ratio 2 shades four times the fragments of ratio 1.

Bad coordinates and bad build volumes

A segment with an Infinity or NaN endpoint coordinate is not drawn. The camera frame still comes from the IR's bounds, so with the default frameContent: 'all' the camera frames the build volume (or the preview bounds) instead of the remaining toolpath; under 'object' it tries the model, then the object bounds, then the build volume. The 2D renderer skips on x/y only. buildChunks counts skipped segments in skippedNonFinite; core and the framework adapters do not surface that count yet (tracked with #518). createBuildVolume and setBuildVolume throw RangeError for a volume that cannot be drawn: a non-finite size, origin or height, a grid pitch that is not a positive number, more than 10 000 grid lines on one axis, or an origin so large that the pitch no longer advances. A bed discovered in the file (a MachineGeometry) never throws: setBuildVolume keeps the current volume and emits an error event with code machine-geometry-invalid. A decimation option must be a whole number of at least 1, or 'auto'; anything else throws RangeError.

Tighter limits on software GL

On headless or software-rendered GL (CI, a VM, a remote desktop) a large file can exhaust memory long before it is slow. Nothing in the renderer adapts to this for you yet (resolveCapability and capabilityHint are experimental and diagnostic-only), so read the context yourself and pick tighter limits:

import { detectRenderCapability } from '@chestnutlabs/gcode-renderer-three';

const gl = document.createElement('canvas').getContext('webgl2'); // a scratch canvas, not the one you render to
const { capability } = gl ? detectRenderCapability(gl) : { capability: 'unknown' };
const constrained = capability !== 'hardware'; // 'unknown' (extension blocked) is treated as constrained

// pass to the parse step (adapters: `parseOptions`) and, on a direct renderer, to `tubeByteBudget`
const parseOptions = constrained ? { limits: { maxSegments: 2_000_000 } } : {};
const tubeByteBudget = constrained ? 100_000_000 : undefined;
Copy

detectRenderCapability never throws; it returns { capability: 'unknown', rawRenderer: null } when the browser hides the renderer string. The two numbers above are starting points to tune for your hardware, not recommendations from measurement.

Most applications should consume this through @chestnutlabs/gcode-preview-core or a framework adapter, which own the parse→render lifecycle.

Part of Chestnut Labs G-code Preview · MIT
