Chestnut Labs G-code Preview

Show a 3D print or CNC/laser job in the browser — before, during, or after it runs.

Drop .gcode, .gcode.3mf, or Prusa .bgcode into a page and get an interactive toolpath: orbit it, clip to a layer, scrub it, color by feature or speed, overlay live progress. Parsing runs off the main thread, so a 250 MB file never freezes the UI — with Vue, React, Svelte, and Web Component adapters over one engine.

▶ Try the live demo Get started Feature gallery API reference GitHub

▶ Try the live demos — the interactive Feature Lab, and React / Vue / Svelte / Web Component examples, running in your browser on the published SDK.

•

  Prepare & Preview

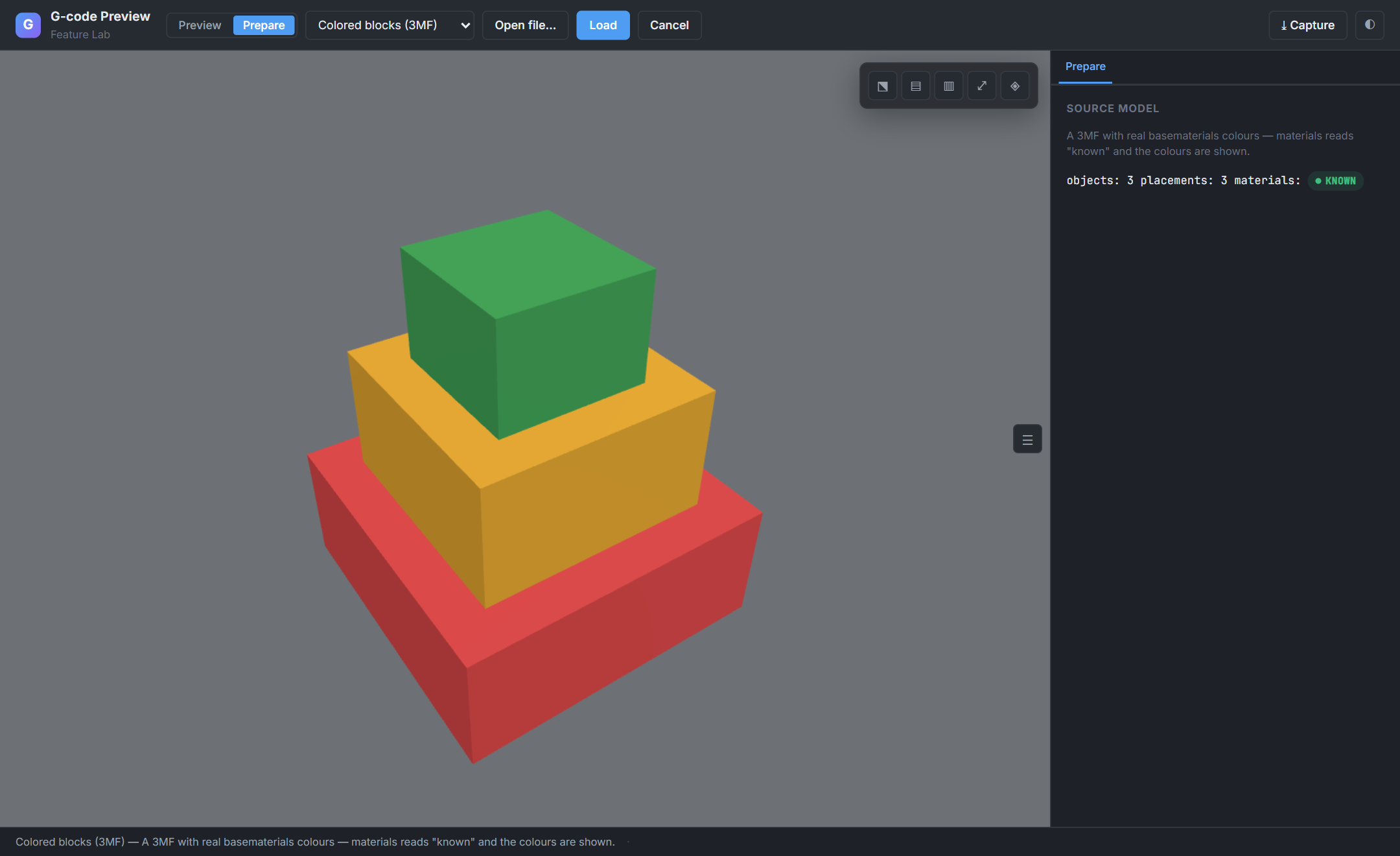

  Two viewers, one SDK: the sliced-G-code toolpath and the source model (STL / 3MF) — a <ModelViewer> on every framework's /model subpath.

•

  Toolpath inspection

  Layer clip, segment & time scrub, travel / retraction / seam markers, source-line mapping.

•

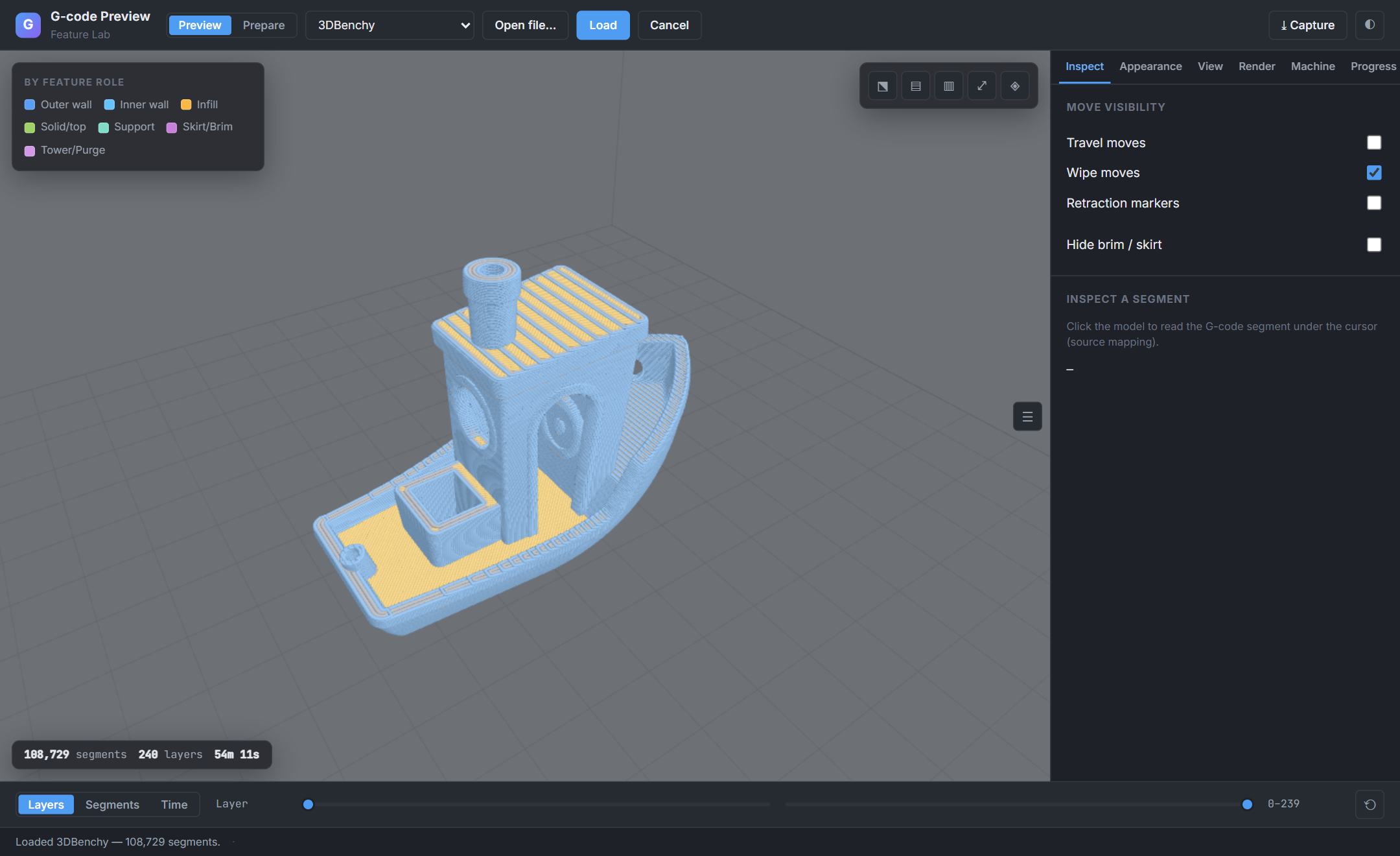

  Coloring & analysis

  Color by speed, feature, object, tool, layer height, color change, or tool power.

•

  Live job progress

  Map printer telemetry onto the path at the confidence it deserves — exact, band, or stale.

•

  Models & plates

  Present the source STL / 3MF — multi-object, per-plate, colored materials — a second renderer.

•

  CNC, laser & parametric

  Cut vs rapid, tool power, canned cycles, and RS274NGC programs the machine computes.

•

  Any build surface

  Rectangular, circular / delta, and polygonal beds — outline and grid follow the real shape.

These Guide and Concept pages are the SDK manual. The generated API reference — every public export of all fourteen @chestnutlabs/* packages — is a companion site linked from the top nav. New here? Jump to the feature gallery to browse the breadth, or start below.

Install

Install the adapter for your framework plus three (the renderer declares three as a peer dependency; npm ≥ 7 installs it automatically, pnpm/yarn users add it explicitly):

npm install @chestnutlabs/gcode-preview-vue three     # or -react, -svelte, -element
Copy

Prefer no framework? Use the Web Component:

npm install @chestnutlabs/gcode-preview-element three
Copy

60-second example (Vue)

<script setup>
import { GcodePreview } from '@chestnutlabs/gcode-preview-vue';
import { shallowRef } from 'vue';
const file = shallowRef(null);
</script>

<template>
  <input type="file" accept=".gcode,.3mf" @change="file = $event.target.files?.[0] ?? null" />
  <div style="height: 70vh">
    <GcodePreview :source="file" @ready="(s) => console.log(`${s.segments} segments`)" />
  </div>
</template>
Copy

Every adapter ships the same defaulted <GcodePreview> surface — source, parseOptions, buildVolume, quality, colorMode, layerRange, scrub, showTravel, progress, cameraMode, theme, createWorker — plus a lower-level API (composable / hook / store / action) for building your own controls. <GcodePreview :source="file" /> is the whole thin path; the full viewer is reachable without switching APIs.

Which package do I need?

Where to next

• Framework adapters — the component and the lower-level API for each framework.
• Recipes — custom workers, .gcode.3mf multi-plate, headless still render, live printer telemetry, multiple previews on one page.
• Concepts — ToolpathIR & the capability model, Workers, streaming & performance, Dialects & containers, Live progress & motion model, Parametric programs (RS274NGC).
• API reference — pick a package in the sidebar (toolpath-core, gcode-parser, …).

Status: published — all fourteen @chestnutlabs/* packages are on npm (latest v0.20.1, lockstep-versioned with provenance). Governance and epic status live in the repository docs.
